Detection Model#
%load_ext autoreload
%autoreload 2
import sportslabkit as slk
dataset_path = slk.datasets.get_path("wide_view")
path_to_csv = sorted(dataset_path.glob("annotations/*.csv"))[0]
path_to_mp4 = sorted(dataset_path.glob("videos/*.mp4"))[0]
root = slk.utils.get_git_root()
cam = slk.Camera(path_to_mp4)
# let's load the first frame of the video
frame = cam.get_frame(0)
Show the models available#
slk.detection_model.show_available_models()
['DummyDetectionModel', 'YOLOv5', 'YOLOv5l', 'YOLOv5m', 'YOLOv5n', 'YOLOv5s', 'YOLOv5x', 'YOLOv8', 'YOLOv8l', 'YOLOv8m', 'YOLOv8n', 'YOLOv8s', 'YOLOv8x']
Load a model#
You can load a model by using the load function. The function searches subclasses of BaseDetectionModel for a match with the given name. If a match is found, an instance of the model is returned. If no match is found, a warning is logged and the function returns None.
There are three arguments to the load function:
model_name: The name of the model to load. This is the name of the class, not the name of the file. It is not case sensitive.
model_config: A dictionary containing the configuration for the model.
inference_config: A dictionary containing the configuration for the inference engine.
det_model = slk.detection_model.load(model_name="yolov5s")
# You can check the current configuration with the following methods:
det_model.show_inference_config()
det_model.show_model_config()
Using cache found in /Users/atom/.cache/torch/hub/ultralytics_yolov5_master
YOLOv5 🚀 2022-4-15 torch 2.0.1 CPU
Fusing layers...
[W NNPACK.cpp:64] Could not initialize NNPACK! Reason: Unsupported hardware.
YOLOv5s summary: 213 layers, 7225885 parameters, 0 gradients
Adding AutoShape...
show_inference_config:0279 💬| Inference configuration:
show_inference_config:0281 💬| augment: False
show_inference_config:0281 💬| size: 640
show_inference_config:0281 💬| profile: False
show_model_config:0274 💬| Model configuration:
show_model_config:0276 💬| ckpt:
show_model_config:0276 💬| repo: ultralytics/yolov5
show_model_config:0276 💬| name: yolov5s
show_model_config:0276 💬| conf: 0.25
show_model_config:0276 💬| iou: 0.45
show_model_config:0276 💬| agnostic: False
show_model_config:0276 💬| multi_label: False
show_model_config:0276 💬| classes: None
show_model_config:0276 💬| max_det: 1000
show_model_config:0276 💬| amp: False
Run detection on a single frame#
The input to the model should be flexible. It accepts numpy.ndarray, torch.Tensor, pathlib Path, string file, PIL Image, or a list of any of these. All inputs will be converted to a list of numpy arrays representing the images.
The output of the model is expected to be a list of Detections objects, where each Detections object represents a group of detected objects in an image.
det_result = det_model(frame, size=2160)[0]
print(type(det_result)) # the result is a Detections object
print(det_result.to_df()) # print the results as a dataframe

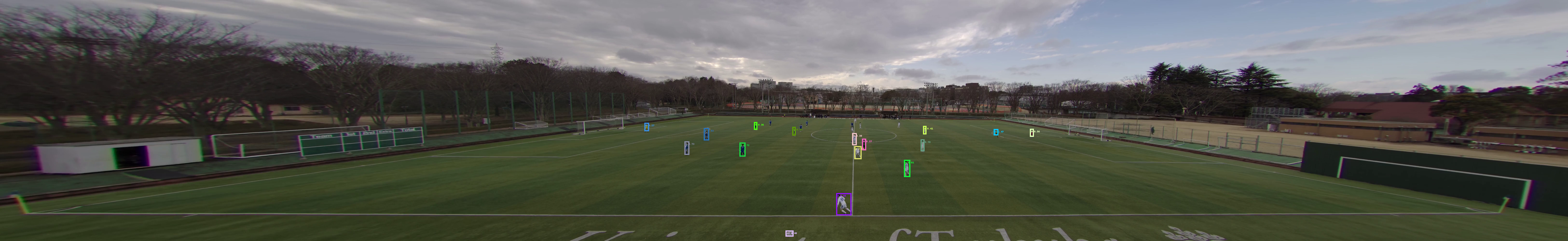

det_result.show(width=5) # show the bounding boxes on the frame
<class 'sportslabkit.types.detections.Detections'>
bbox_left bbox_top bbox_width bbox_height conf class
0 3466.391602 801.390747 63.701904 92.222412 0.849213 0.0
1 3747.301270 663.855103 26.516602 71.434509 0.808534 0.0
2 2837.196289 586.880493 20.092529 56.812317 0.728038 0.0
3 3065.378662 591.651978 25.591309 58.877136 0.724596 0.0
4 3816.991455 578.123291 16.481934 49.973877 0.701101 0.0
5 3541.677246 606.524536 30.815674 54.752747 0.633019 0.0
6 4269.717773 534.560120 16.832520 33.796143 0.557433 0.0
7 2917.936279 531.887817 22.650879 51.573120 0.525037 0.0
8 4119.772461 535.993774 19.048828 26.631165 0.466014 0.0
9 3284.744141 526.443054 14.508301 36.542236 0.429612 0.0
10 3826.764893 522.474243 14.240723 35.303528 0.408996 0.0
11 3256.889648 956.409790 33.006592 25.906067 0.402175 32.0
12 3573.783936 575.707031 17.346680 48.802063 0.365244 0.0
13 3125.590332 506.247986 14.428711 32.135956 0.362341 0.0
14 3532.093750 552.312256 19.456299 50.779053 0.297897 0.0
15 2671.718262 509.728455 19.906982 35.318329 0.273514 0.0
Run detection on multiple frames (batched input)#
det_results = det_model(cam[:10], size=2160)
print(f'Number of results: {len(det_results)}')
det_result = det_results[0]
print(det_result.to_df()) # print the results as a dataframe
det_result.show(width=5) # show the bounding boxes on the frame
Number of results: 10
bbox_left bbox_top bbox_width bbox_height conf class
0 3466.391602 801.390747 63.701904 92.222412 0.849213 0.0
1 3747.301270 663.855103 26.516602 71.434509 0.808534 0.0
2 2837.196289 586.880493 20.092529 56.812317 0.728038 0.0
3 3065.378662 591.651978 25.591309 58.877136 0.724596 0.0
4 3816.991455 578.123291 16.481934 49.973877 0.701101 0.0
5 3541.677246 606.524536 30.815674 54.752747 0.633019 0.0
6 4269.717773 534.560120 16.832520 33.796143 0.557433 0.0
7 2917.936279 531.887817 22.650879 51.573120 0.525037 0.0
8 4119.772461 535.993774 19.048828 26.631165 0.466014 0.0
9 3284.744141 526.443054 14.508301 36.542236 0.429612 0.0
10 3826.764893 522.474243 14.240723 35.303528 0.408996 0.0
11 3256.889648 956.409790 33.006592 25.906067 0.402175 32.0
12 3573.783936 575.707031 17.346680 48.802063 0.365244 0.0
13 3125.590332 506.247986 14.428711 32.135956 0.362341 0.0
14 3532.093750 552.312256 19.456299 50.779053 0.297897 0.0
15 2671.718262 509.728455 19.906982 35.318329 0.273514 0.0
